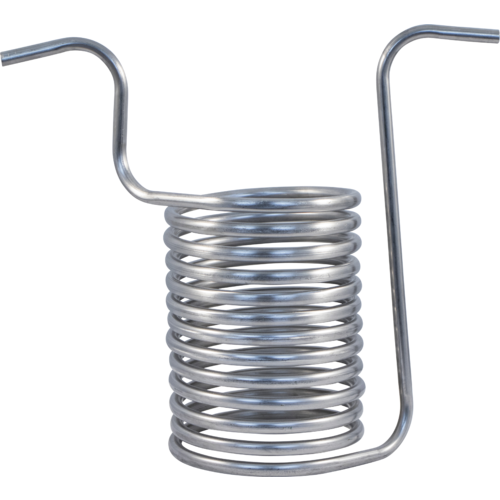

Sold with the BrewZilla Range, these compact immersion chillers are great for chilling wort up to 35L down to pitching temperature. Ideal solution for those using small pots.
This chiller can be used simply by connecting your garden hose to both ends of the chiller. You can either slip the garden hose onto the ends of the chiller directly then secure with stepless hose clamp. Alternatively for a better connection use the compression fittings.
Then lower the chiller into your hot wort and cycle the water through the chiller until you reach the desired temperature.
If you agitate your hot wort while the water is flowing through the chiller this will significantly aid the heat transfer from the wort to the chiller coil and will reduce the cooling time by more than half.
The second method is where you pump your hot wort through the middle of the chiller. Use a silicone tube to connect from your boiler to a pump and then through this coil chiller then back to the boiler. Turn on the pump and ensure the chiller has got up to your wort boiling temperature to heat sterilise the coil.
Then immerse the coil into a bucket of ice and water mixed together. Run the pump continuously until the wort cools down to the desired point.
Coiled part of the chiller: 24cm high x 19cm diameter
Total height of the chiller: 41cm
Tubing: 12.7mm, 304 Stainless
12.7mm Compression Fitting recommend for attaching hose fittings. E.g. Homebrew standard Camlock fittings
