Description

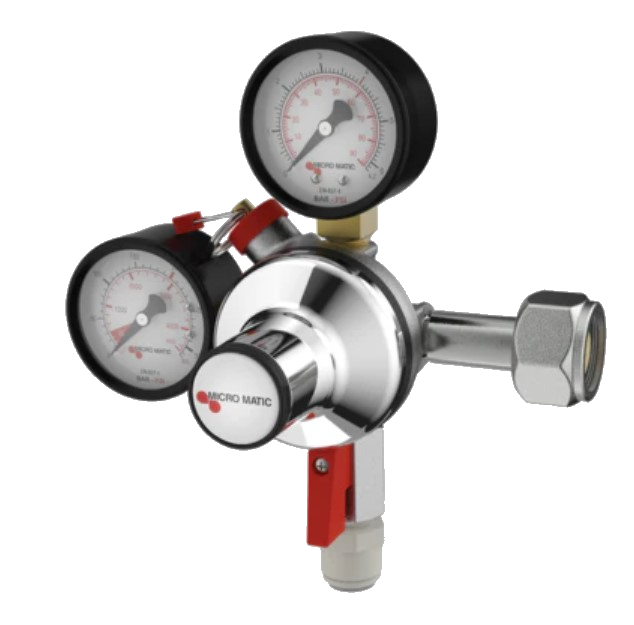

A high quality regulator built for durability with a forged brass body, accurate machining, chrome plated finish, nickel-plated valve seats for high corrosion resistance, constant pressure supply at high output flow rates and easy to use dial knob for pressure adjustment.
- High performance
- Accurate pressure control
- Designed to be non-serviceable
- Integrated pressure relief valve
- Stainless steel valve seat
- Zn/Ni plated brass housings
- SK approved
- Individually numbered for traceability
- Tamper evident cap breaks to access adjust screw and ring between housings
Inlet connections:
- CO 2 : W 21.8 x 1/14
Outlet connection:
-outside: 1/2“ – 5/8“ – 3/4“ BSP
-inside: 1/4“ NPT
Inlet pressure: 60 bar (CO 2 ) and 200-230 bar
Working pressure: 0-4 bar
Capacity: 100 l/min maximum
Media: CO2, N2 and mixed gases
